臥式撥動開關側撥技術指標

1. 額定負荷: DC 12V 30V  0.3A 0.5A

2. 接觸阻抗: ≤50mΩ

3. 絕緣阻抗: ≥100mΩ DC500V

4. 耐焊溫度: 250±5°5s

5. 使用壽命: 10,000 cycles

6. 使用溫度: -25 ℃ to 80 ℃

7. 使用濕度: ≤85% RH

8. 操作力 : 160gf 180gf 260gf  可定制

9.手柄長度:2MM-10MM      可定制

應用：汽車電器、工控設備、數(shù)碼產品、安防、電腦、通訊產品、家用電器、智能交通等。

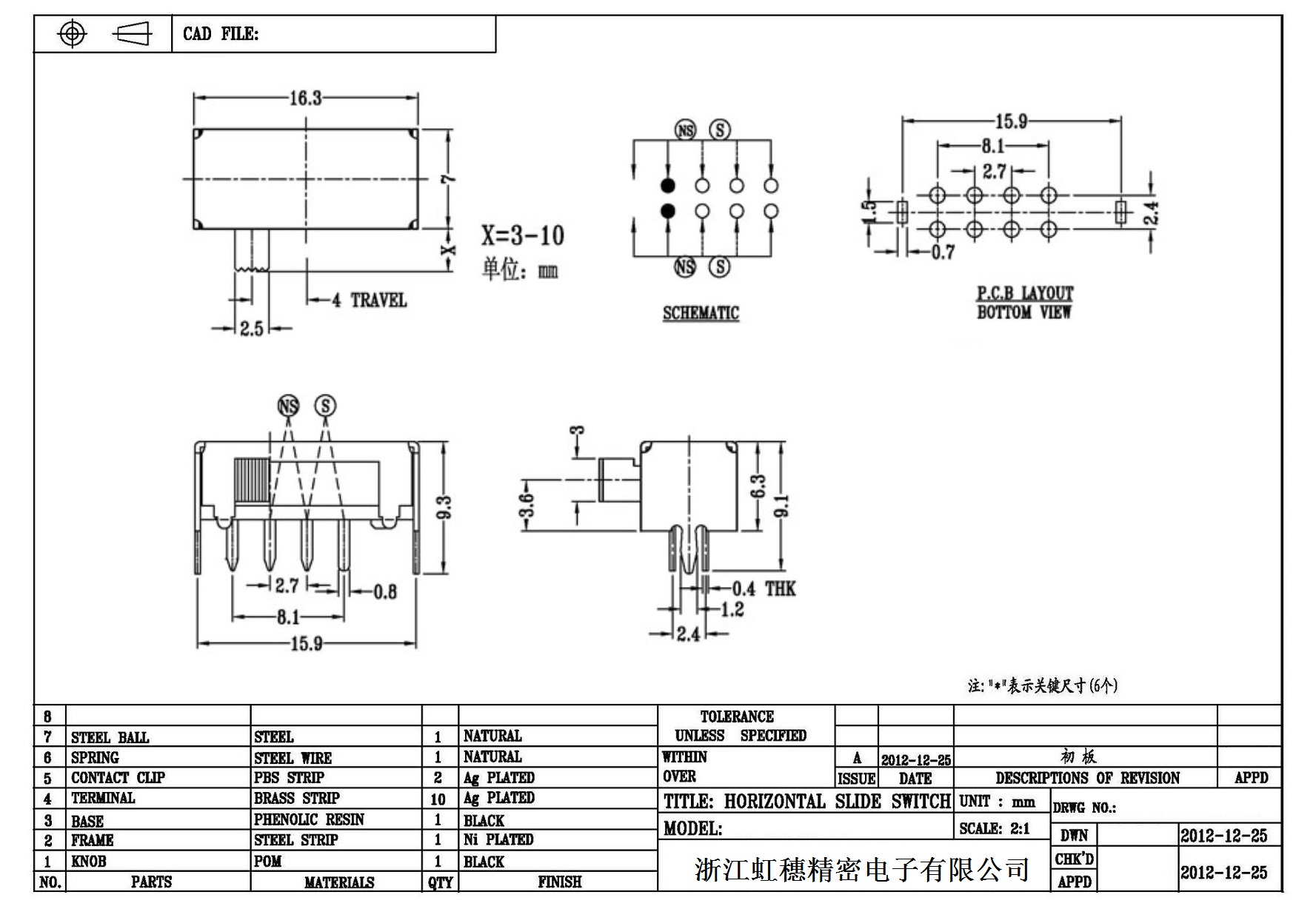

Horizontal toggle switch sidedial/horizontal slide switch technical indicators

1. Rated load: DC 12V 30V 0.3A 0.5A

2. Contact impedance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC500V

4. Soldering resistance temperature:250±5°5s

5. Service life: 10,000 cycles

6. Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 160gf 180gf 260gf canbe customized

9. Handle length: 2MM-10MM can becustomized

Application: automotive electricalappliances, industrial control equipment, digital products, security,computers, communication products, household appliances, intelligenttransportation, etc.
